Gegadyne Energy – Non-Lithium Based Fast Charging Battery Technology

Following products are availabe for different applications.
Kindly contact us for more details.

21700 2.0Ah Cell

Capacity : 2Ah.
Nominal Voltage : 3.0V.
Cell Voltage Range : 1.5 - 3.95V
Max. Charge Rate : 4C.
Max. Discharge Rate : 4C
Internal Resistance : ≤ 25mΩ
Cycle Life : > 3000
Operating Temperature (Charge) : 0°C to 45°C
Operating Temperature (Discharge) : -40°C to 60°C
Storage Temperature : -10°C - 45°C

26700 3.2Ah Cell

Capacity : 3.2Ah.
Nominal Voltage : 3.0V.
Cell Voltage Range : 1.5 - 3.95V
Max. Charge Rate : 1C.
Max. Discharge Rate : 3C
Internal Resistance : ≤ 20mΩ
Cycle Life : > 3000
Operating Temperature (Charge) : 0°C to 45°C
Operating Temperature (Discharge) : -40°C to 60°C
Storage Temperature : -10°C - 45°C

26700 2.6Ah High Power Cell

Capacity : 2.6Ah.
Nominal Voltage : 3.0V.
Cell Voltage Range : 1.5 - 3.95V
Max. Charge Rate : 3C.
Max. Discharge Rate : 20C
Internal Resistance : ≤ 20mΩ
Cycle Life : > 3000
Operating Temperature (Charge) : 0°C to 45°C
Operating Temperature (Discharge) : -40°C to 60°C
Storage Temperature : -10°C - 45°C

46145 19Ah Cell

Capacity : 19Ah.
Nominal Voltage : 3.0V.
Cell Voltage Range : 1.5 - 3.95V
Max. Charge Rate : 1C.
Max. Discharge Rate : 5C
Internal Resistance : ≤ 1mΩ
Cycle Life : > 3000
Operating Temperature (Charge) : 0°C to 45°C
Operating Temperature (Discharge) : -40°C to 60°C
Storage Temperature : -10°C - 45°C

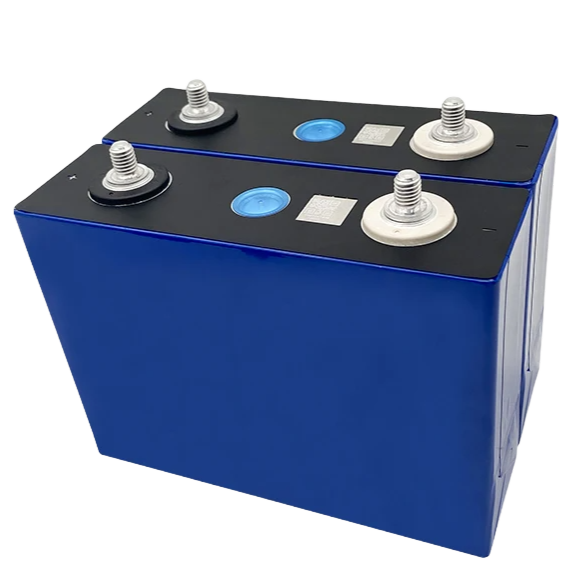

50160118 75Ah Prismatic Cell

Capacity : 75Ah.
Nominal Voltage : 3.0V.
Cell Voltage Range : 1.5 - 3.95V
Max. Charge Rate : 3C.
Max. Discharge Rate : 5C
Internal Resistance : ≤ 3mΩ
Cycle Life : > 3000
Operating Temperature (Charge) : 0°C to 45°C
Operating Temperature (Discharge) : -40°C to 55°C
Storage Temperature : -10°C - 45°C

73174207 200Ah Cell

Capacity : 200Ah.
Nominal Voltage : 3.0V.
Cell Voltage Range : 1.5 - 3.95V
Max. Charge Rate : 1C.
Max. Discharge Rate : 1C
Internal Resistance : ≤ 0.25mΩ
Cycle Life : > 3000
Operating Temperature (Charge) : 0°C to 45°C
Operating Temperature (Discharge) : -40°C to 60°C
Storage Temperature : -10°C - 45°C
